Selector Ball Valves
    发布时间: 2025-04-15 15:44

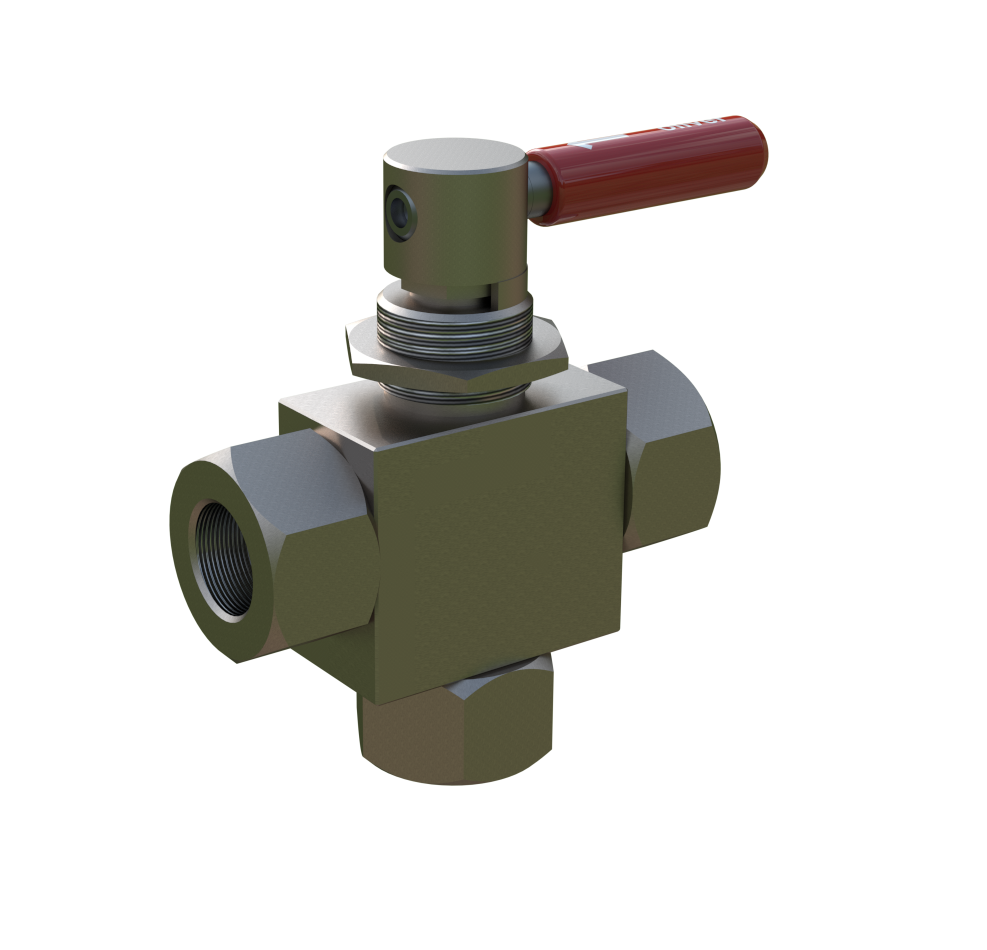

The ‘B6PMBSEL’ Type 3 way Flow Diverting Ball Valve is designed for safely diverting flow to one of the two outlet ports. Totally enclosed soft seats offer both positive sealing and low operating torques, from vacuum to high-pressure service. Anti-blow out spindle is fitted as standard with the PTFE/PEEK spindle and body seals. 4mm Bore only.

Selector Ball Valves
Selector Ball Valve Specifications:
PSI Ratings6,000 / 10,000 PSI
Temperature121 Deg C
SealsPTFE/PEEK
Thread FormNPT
Connection SizeFrom 1/4" to 1/2"
HandleLever
SeatsPEEK
Bore4mm Only
