B6M Ball Valve
    发布时间: 2025-04-15 15:51

The ‘B6’ Type Single Isolating Ball Valve is designed for safe and reliable isolation giving bubble tight shut off. Totally enclosed soft seats offer both positive sealing and low operating torques, from vacuum to high pressure service. Anti-blow out spindle is fitted as standard with the option of PTFE or Grafoil seals.

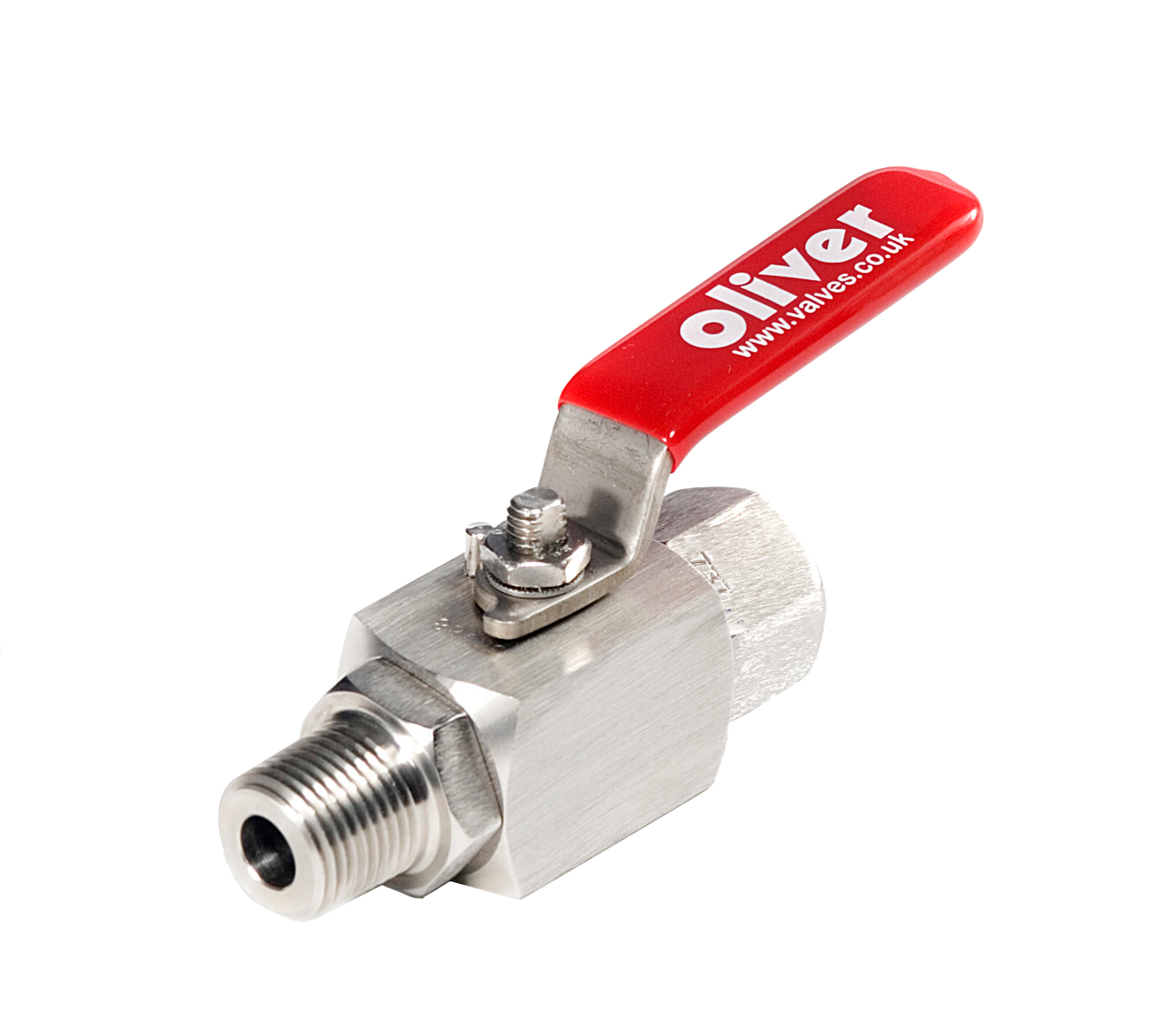

B6M Ball Valve
High Pressure Ball Valve Specifications:
PSI Rating6,000 PSI
Temperature120 Deg C
SealsPTFE
Thread FormNPT (AS STANDARD) / BSPP / BSPT other on request
Connection SizeFrom 1/4" to 1"
HandleLever
SeatsPTFE/PVDF
Bore10mm / 14mm / 20mm
