T Type Instrument DBB Valve
    发布时间: 2025-04-15 16:00

Machined from forged bar, our “T” Type Double Block and Bleed Valves feature two inline ball pattern primary and secondary isolating valves and a ball valve vent. With a range of different operating temperatures and configurations, our Double Block and Bleed Valves are the superior market leader

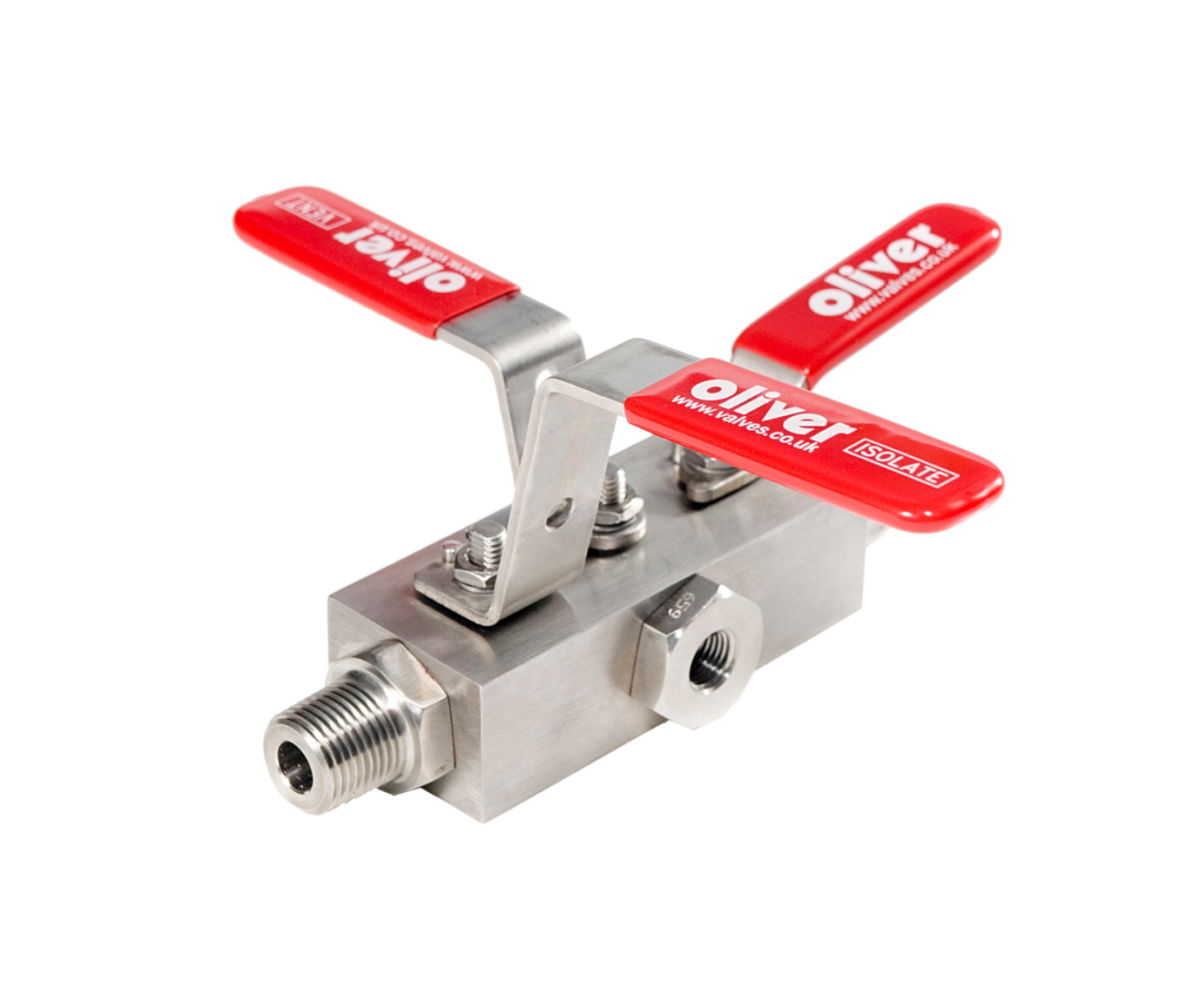

T Type Instrument DBB Valve
T Type Instrument DBB Valve Specifications:
PSI RatingsFrom 6,000 to 10,000PSI
TemperatureUp to 200 Deg C (Soft Seat)
PackingPTFE or Graphite
Connection SizeFrom 1/4” to 1”
HandleLever and ‘T’ Bar
SeatSoft (PCTFE/PEEK)
Bore10mm/14mm/20mm
FiresafeBS6755 Pt2, API 607, API 6FA, ISO 10497
